May 4, 20179 yr In response to a user request, I have made the EADI readouts more similar to the official aircraft documentation. If that interests you and you have my earlier GTN version, send me a PM with your email address. Bert
May 6, 20179 yr Author .. and Marcel Ritzema has picked this up and made it a lot better! Stay tuned for an updated version in the next few days Bert
May 8, 20179 yr Hiya, With help of Bert i've improved my XML hacking skills . At the moment send Bert the release candidate of my improved EADI display. Oke, what is changed, hope i remember all i tweaked. Basis for the tweaks are real-life PC-12 manuals and PC-12 cockpit movies on youtube. - Most of the autopilot-mode readouts locations are tweaked.Colour changed, armed mode = WHITE, captured mode = GREEN; - DH readout colour changed to green; - RA range extend to 2500 ft, when out of range "---" is shown; - RA below 500 ft, will show 5 ft in/decrements instead of 10 ft; - Compass_strip, added: N, E, W en S; - Added ILS/APP mode, the sky/ground "square" will be reduced to give the Speed pointer, Glideslope and slip-indicator a black background to provide more contrast. To give a impression how it looks now: Available on request through Bert. Marcel
May 8, 20179 yr Author Many thanks to Marcel, for really improving the EADI look and feel Copies now available, on request, via PM. Please include your email address! Bert
May 9, 20179 yr Author 2 hours ago, briansommers said: Do I need this if I have the v2 of the pc12? yes Bert

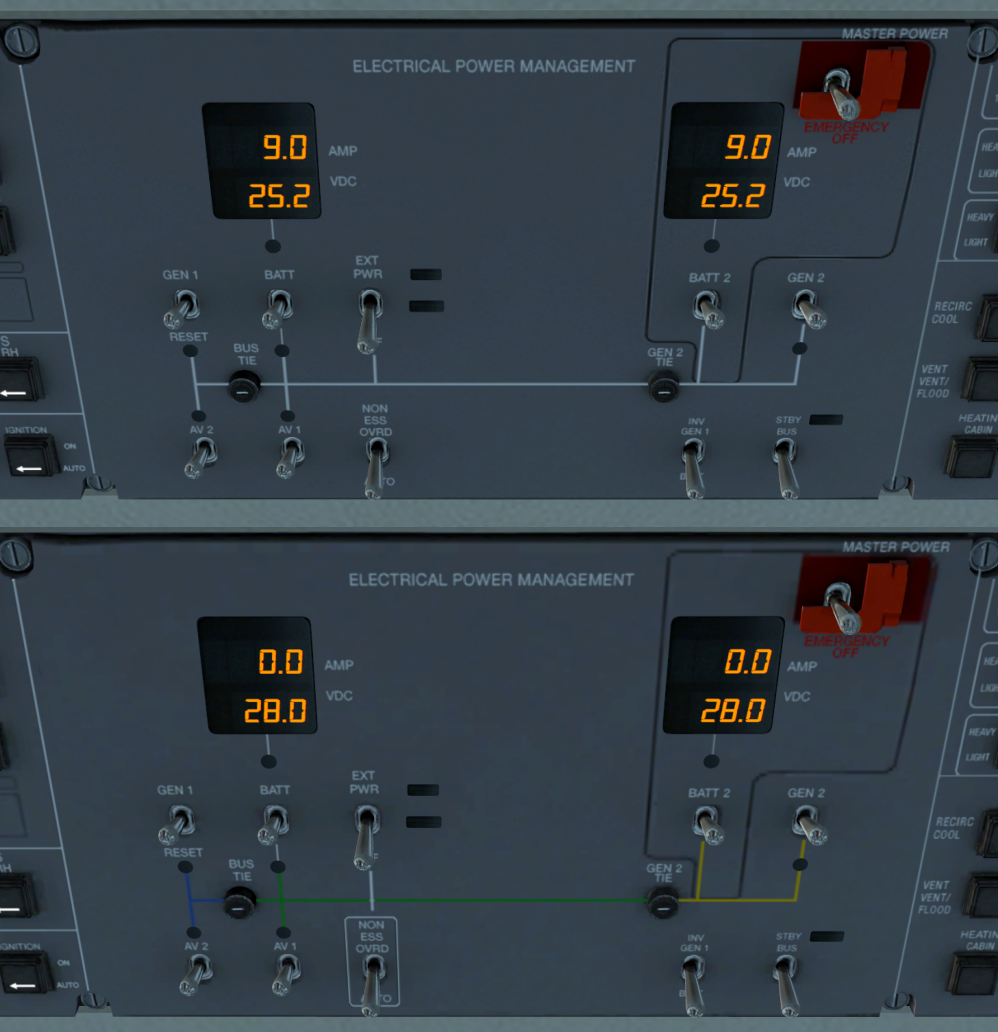

August 23, 20178 yr Some more small updates coming up: Gauges: - EADI: DH marker, background made black - EADI: IAS and VS can not be displayed at the same time now - EADI: Fast/Slow pointer modified according real-life - EADI: Roll pointer/scale redrawn for more sharpness - Altimeter: Changed colour (more orange) FEET, pHa en IN MB changed to real text, remove the texture. - Altimeter: When below 100 ft and 1000 ft, leading Zero('s) removed. Added real-life marks for altitudes below 10.000 ft. Textures: - Overhead panel, colour coded electric bus, like real-one Regards, Marcel
August 23, 20178 yr Marcel - Thank you. The work of this community has given me hundreds of hours of enjoyment with the PC-12 and has even bled over into a real-world appreciation for the air frame. Look forward to the release. - Mark Manacsa Most of the flight simulation community is pretty toxic and gets easily worked up about little things. Just go into it knowing that.
September 15, 20178 yr On 8/23/2017 at 7:12 AM, mgr said: Some more small updates coming up: Gauges: - EADI: DH marker, background made black - EADI: IAS and VS can not be displayed at the same time now - EADI: Fast/Slow pointer modified according real-life - EADI: Roll pointer/scale redrawn for more sharpness - Altimeter: Changed colour (more orange) FEET, pHa en IN MB changed to real text, remove the texture. - Altimeter: When below 100 ft and 1000 ft, leading Zero('s) removed. Added real-life marks for altitudes below 10.000 ft. This is fantastic work! Thank you! I have made my own changes to the EHSI, namely the color scheme now changes from green to cyan when GPS is the NAV source. Also, I modified the CDI behavior to integrate better with RXP gauges...but that needs a little more testing. Perhaps I can integrate my mods? I'll email Bert.
September 15, 20178 yr 54 minutes ago, Bert Pieke said: The more, the merrier - this is all volunteer work Is the most recent updates provided from Marcel available from you, Bert? - Mark Manacsa Most of the flight simulation community is pretty toxic and gets easily worked up about little things. Just go into it knowing that.
